Soil Standard Penetration Test Cone Penetrometer SPT Apparatus

Soil Standard Penetration Test Cone Penetrometer SPT Apparatus

Soil Standard Penetration Test cone penetrometer SPT Apparatus

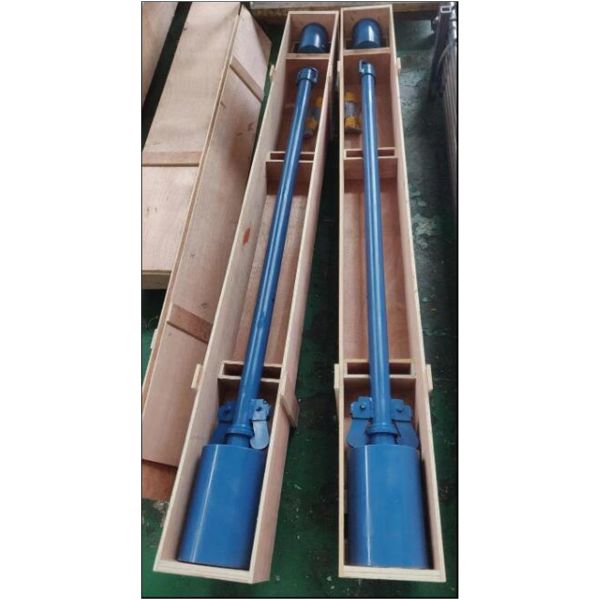

Product Description

I. Use
It used for rapid insitu measurement of the structural properties of existing road pavements constructed with unbound materials.

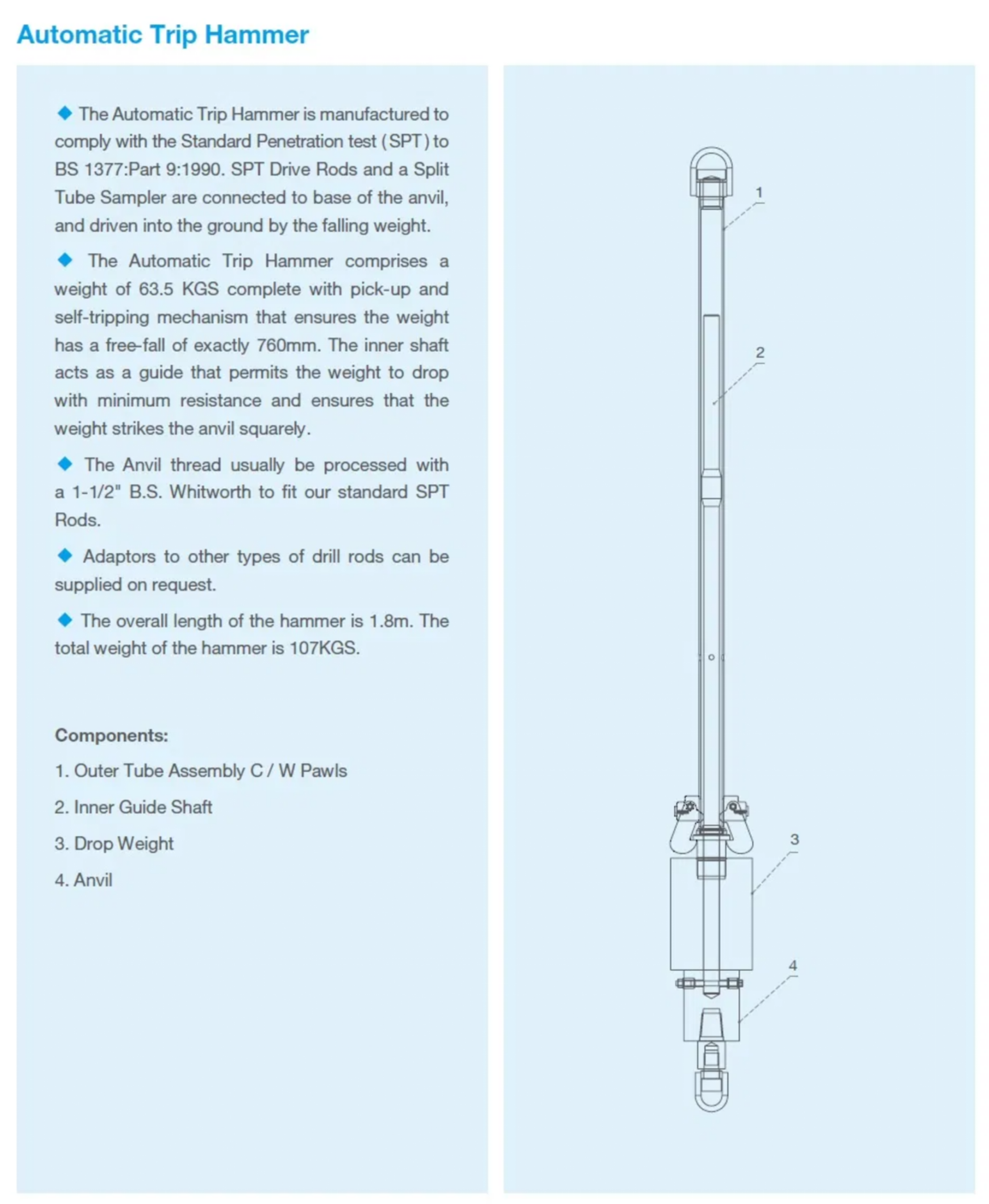

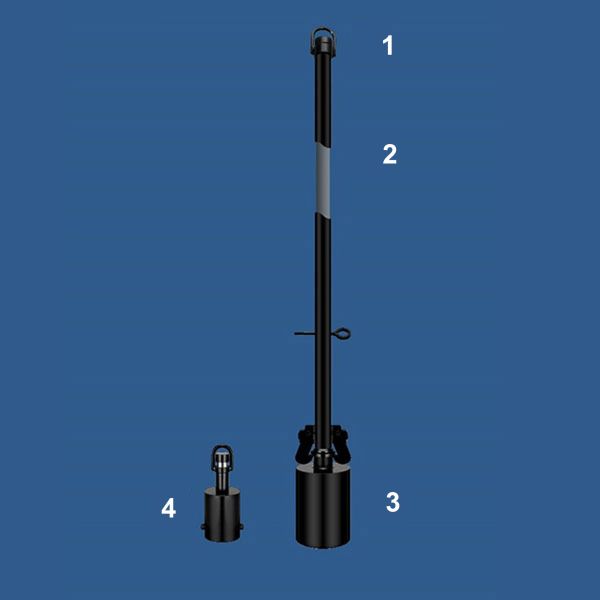

II. Structure
SPT Split Tube Sampler design for carry out the Standard Penetration Test (SPT) to BS 1377: Part 9: 1990 and ASTM standards. The Top Ball Valve Adaptor, pair of Split Spoons, and open SPT Shoe compose a complete of Split Tube Sampler. A Basket Retainer made from steel also is available as an option the sampler. The ball valve adaptor prevents samples from being washed out of the sampler when it is withdrawn from the borehole. A 60 degree nose cone or long solid rod with 60 degree point is available for carrying out SPT (c) tests in gravel and loose material. The screw connection on the top adaptor depends on the type of drill rods being used to drive the sampler. Most frequently used rods are 1-1/2" B.S. Whitworth, NWY Rod, BW or AW.

III. Technical Specification

Number	Name	Technical indicators
1	Hammer weight	63.5kg
2	Fall height	760mm
3	Extended Length	260cm
4	Unextend length	180mm
5	Net weight	107kg
6	Split Tube Sampler outer size	50.8mm x610mm
7	Inner size	45.7mmx610mm

Soil Standard Penetration Test cone penetrometer SPT Apparatus

Product Tags:

SPT Split Tube Sampler



Automatic SPT Hammer



SPT Automatic Hammer
